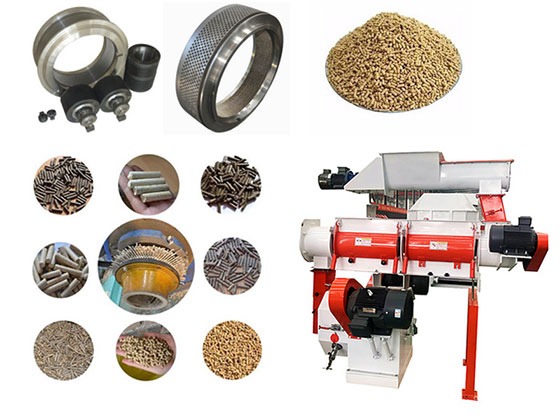

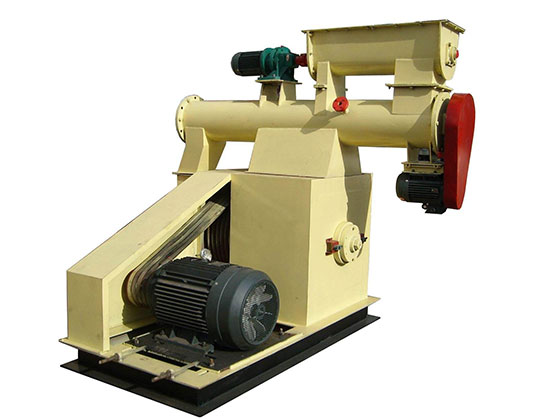

Ring-die Chicken Feed Pellet Machine

Lima ring die chicken feed pellet machine is kind of large feed pellet mill machine that can be used in animal feed production line, and it is able to pelletize corn stalk, bean stalk, flower sapling, sweet potato wine, clover grass, rape straw, etc.
Product description

Ring-die Chicken Feed Pellet Machine

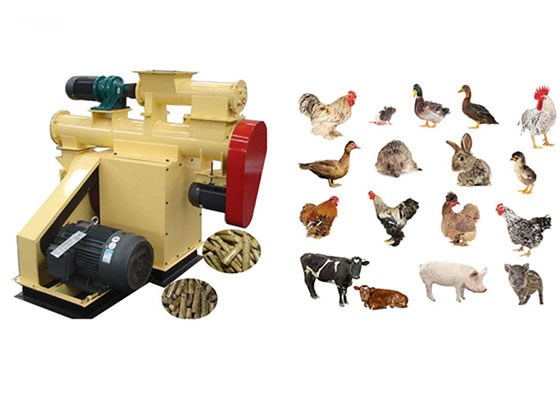

Lima ring die chicken feed pellet machine is kind of large feed pellet mill machine that can be used in animal feed production line, and it is able to pelletize corn stalk, bean stalk, flower sapling, sweet potato wine, clover grass, rape straw, etc. into pellet feed for cattle, pig, cow, sheep, rabbit, chicken, duck, fish, etc. This animal feed making machine is a great choice for making fodder in large-middle feed factories and livestock farm. If you are interested in making pellet in large scale production, this ring die feed mill machine mill is the feasible investment!

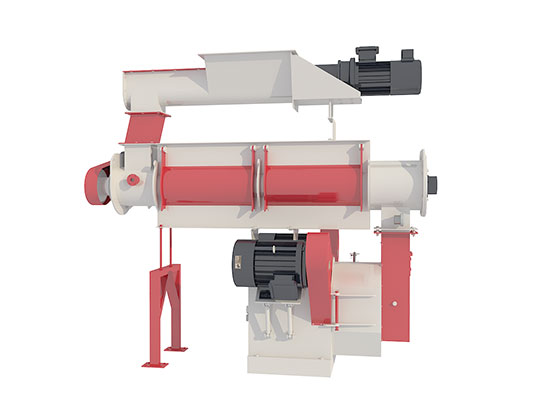

Structure of Lima Ring Die Poultry Feed Pellet Machine
Lima ring die chicken feed making machine is mainly composed of feeder, modulator, pelleting machine, and lubrication system. The raw materials enter into the feeding auger, then are the tempering and mixing processes. After the tempering, the temperature and humidity of raw materials are conditioned to be proper quality. After all these, materials get into the pressing chamber to be pelletized through the chute.
Wide Application of This Animal Feed Processing Machine
1. Make feed pellets from materials like corn, wheat bran, rice, beans, leftover, etc.
2. Applied for feed processing plants, grain feed factory, livestock farm, poultry farm, individual farmers, etc.

Ring-die Chicken Feed Pellet Machine
Machine Functions

Ring-die Chicken Feed Pellet Machine
01
This high efficiency fish feed pellet making machine is widely used for making feedstuff for all kinds of fish.
Ring-die Chicken Feed Pellet Machine
02
The pellet size from1.5mm to 12mm, fit for different fishes. The pellet can floating on the water over12 hours, no have any pollution to the water and the fish.
Ring-die Chicken Feed Pellet Machine
03
We have different scales, the capacity from 50kgs to 2 tons (this is a production line) per hour.
Ring-die Chicken Feed Pellet Machine
04
We can also make new machines according to the clients’ different requirements.
Product features

1.Different pellet sizes and compression ratios for different requires of different clients
2.Reduced time of replacing the ring die to improve the production efficiency
3.Stainless steel pellet chamber, less wear and tear
4.Can be preferred for the small scale simple animal feed plant or full-automatic feed production line
Product parameter

Model Capacity Power Pellet   Size Weight Dimension
LM-KLJ100 100KG/H 3KW 4-6mm 50kg 1150*300*550mm
LM-KLJ300 300KG/H 7.5KW 4-6mm 150kg 1260*400*650mm
LM-KLJ500 500KG/H 11KW 4-6mm 200kg 1300*.500*850mm
LM-KLJ700 700KG/H 15KW 4-6mm 500kg 1400*600*100mm
LM-KLJ800 800KG/H 22KW 4-8mm 570kg 1700*600*1100mm
LM-KLJ1000 1000KG/H 30KW 4-8mm 750kg 1860*670*1600mm
LM-KLJ4000 4-18T/H 117KW 4-12mm 2450kg 3123*1050*2915mm
